Automated Bergstik Connector Inline Inspection System
Overview
In electronics manufacturing, connector assembly quality plays a decisive role in product reliability and long-term performance. Even the smallest misalignment of pins or mold orientation errors can cause failures in downstream applications. Traditionally, connector inspection relied on manual visual checks — methods prone to human error, inconsistency, and inefficiency.
To overcome these limitations, Unilogic Technologies engineered a fully automated Bergstik Connector Inline Inspection System. This Machine Vision Based Inspection Solution integrates multi-camera vision stations, precision illumination, and PLC-based automation to deliver 100% inline quality assurance before connectors reach packaging.
Process Overview
The system performs End-to-End Inspection of Bergstik connectors, from mold orientation verification to pin true position (TP) inspection, ensuring only defect-free connectors move forward.
1. Component Feeding
- Connector molds and golden pins are fed separately.
- Proper direction of pin insertion is verified to prevent assembly defects.

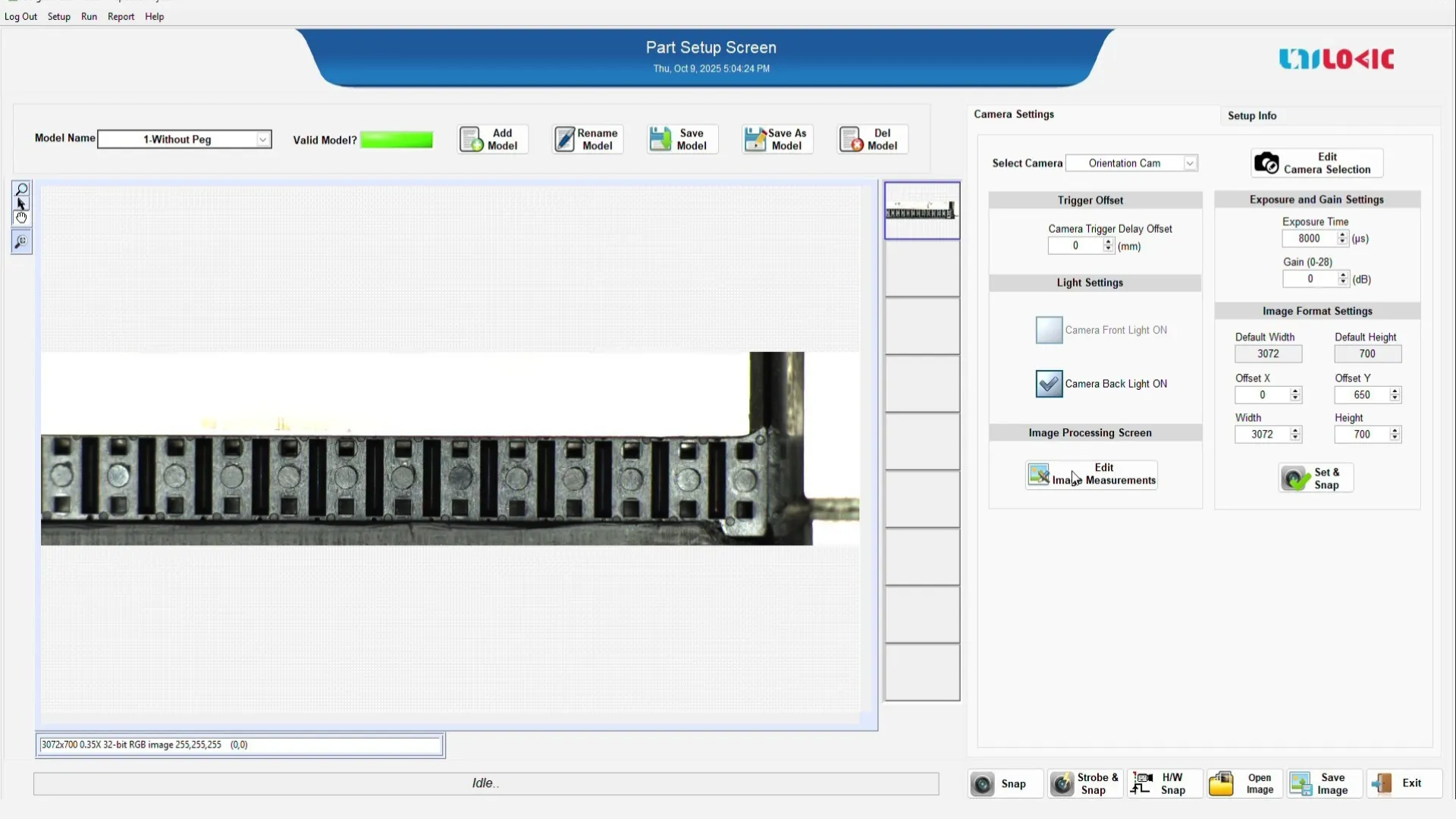

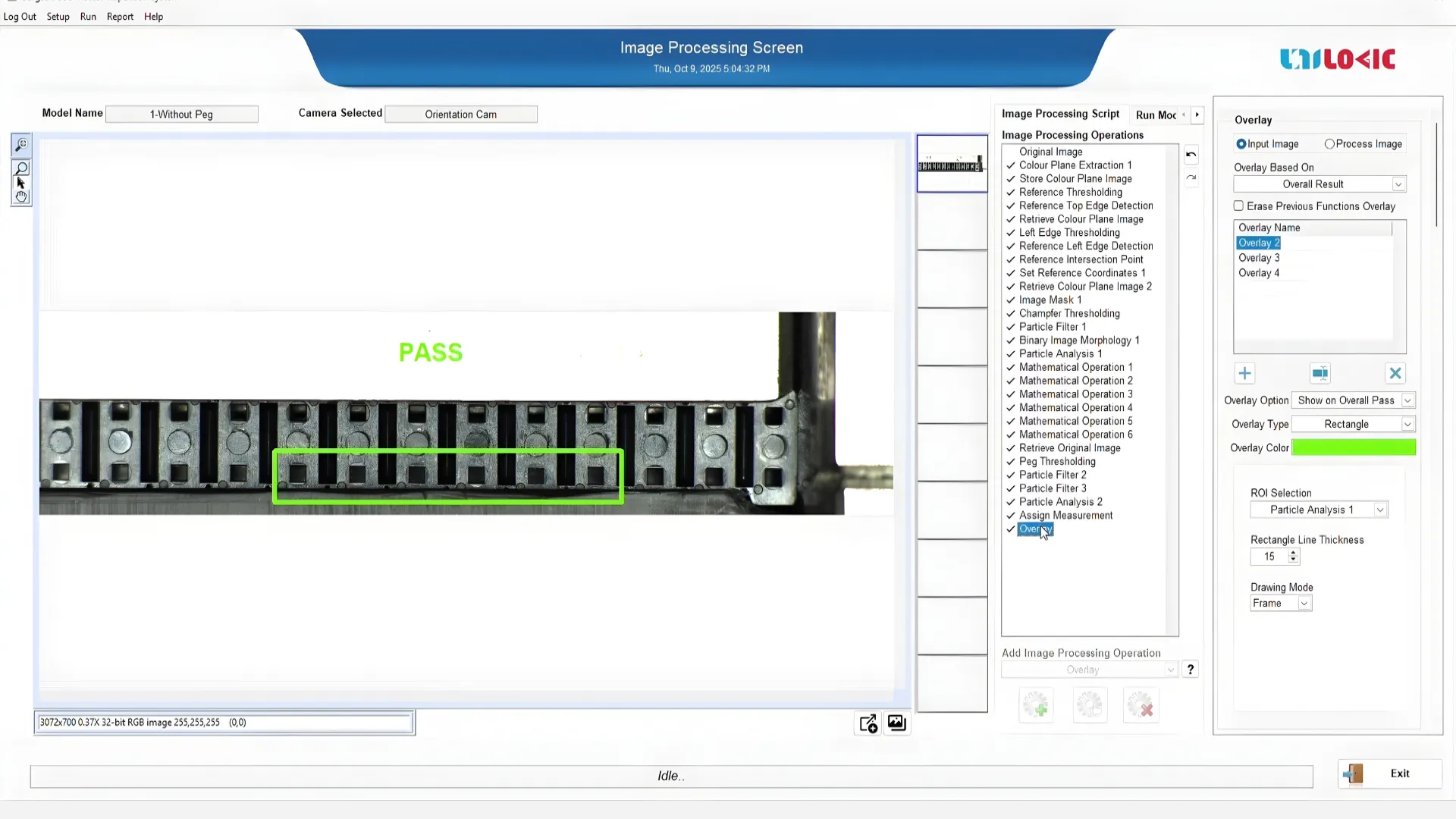

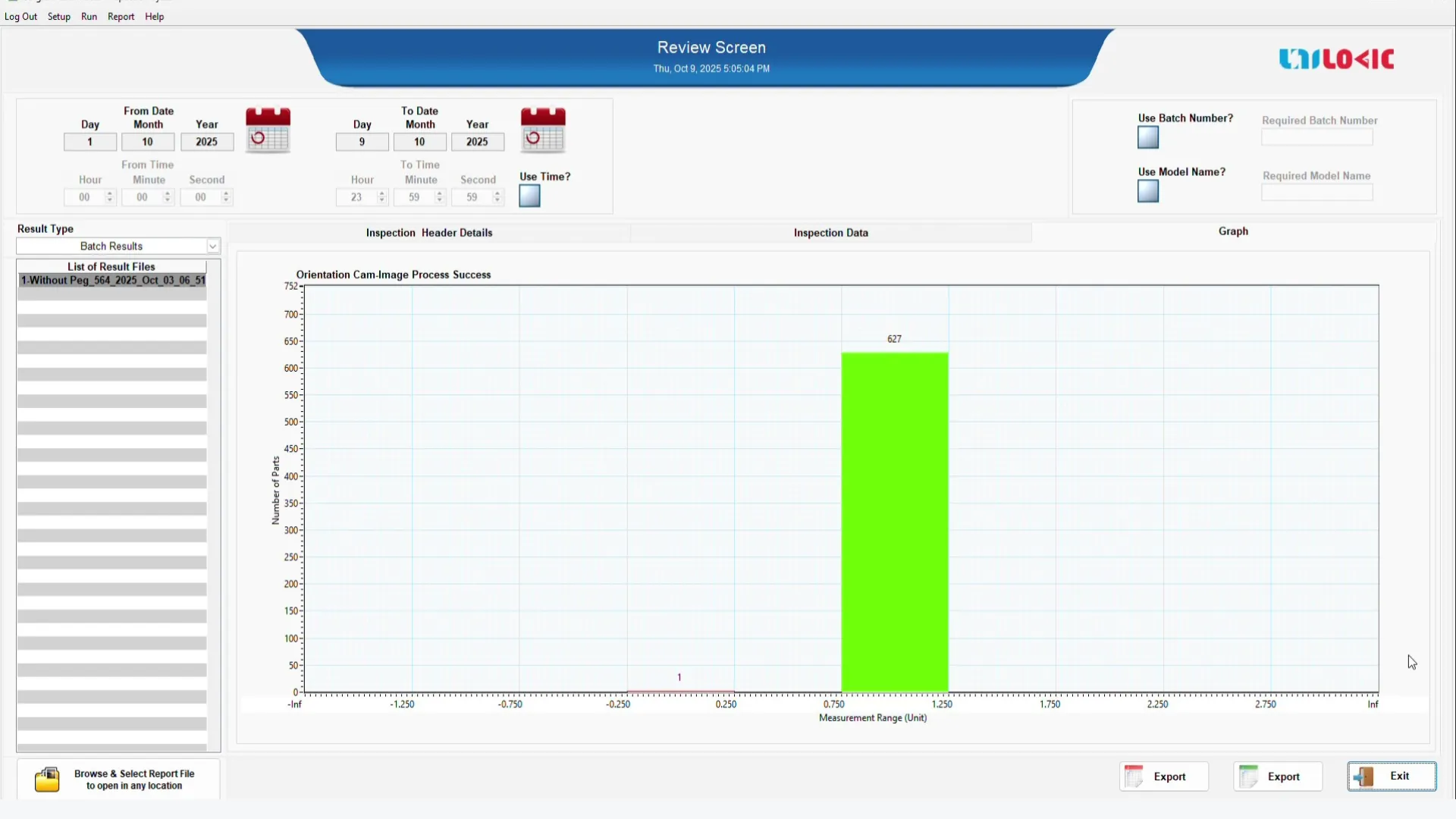

2. Mold Orientation Inspection (Vision Station 1)
- A 6 MP high-resolution camera with HPDG ring light illumination captures mold images.
- Custom vision algorithms detect mold orientation.
- Results are communicated to the PLC, which activates a rotary mechanism to correct mold position before pin insertion.
3. Pin Insertion & Assembly
- Once orientation is corrected, molds move to the Pin Insertion Station.
- Pins are inserted and formed into the final connector structure.

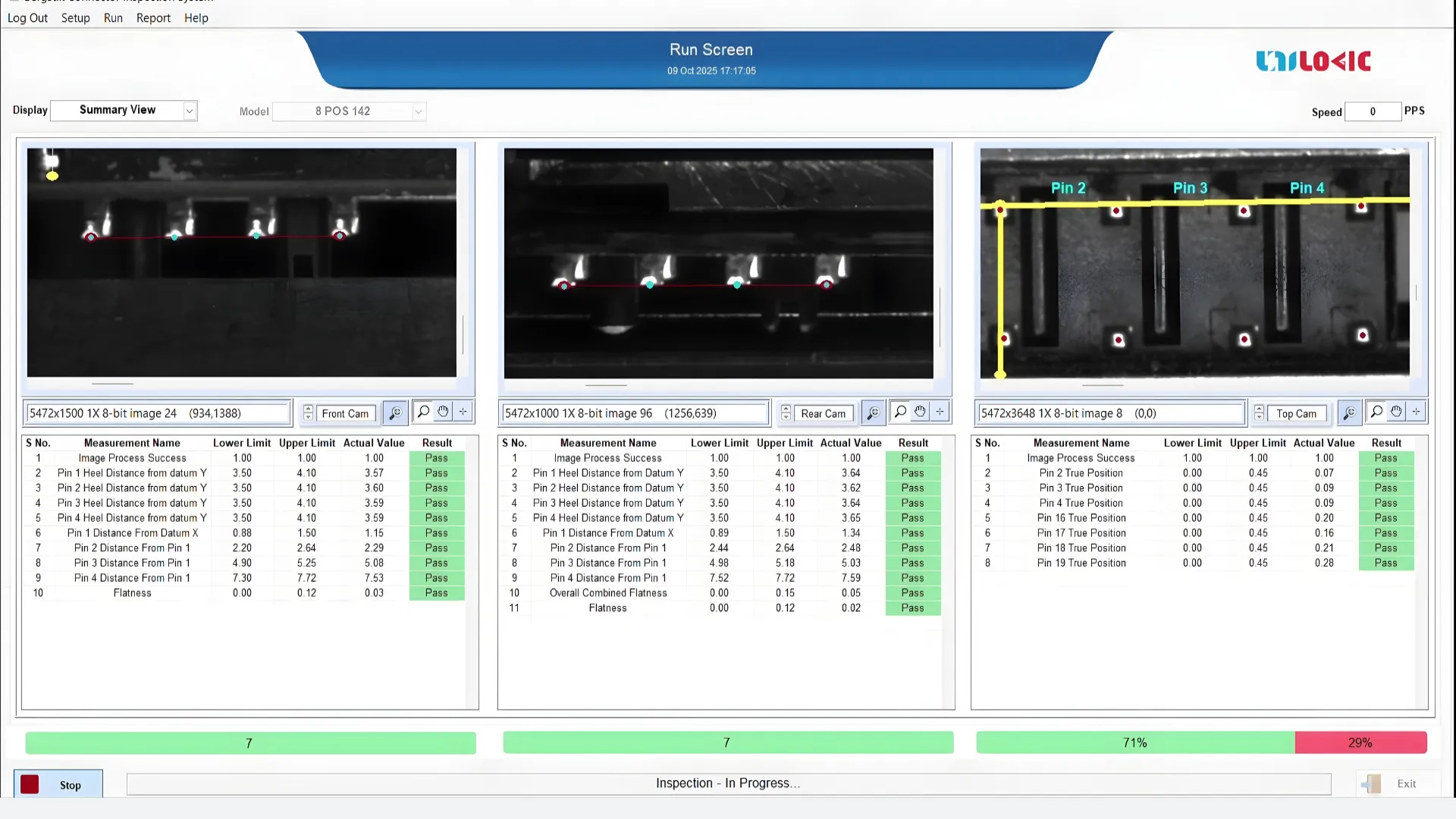

4. Pin True Position (TP) Inspection (Vision Stations 2, 3, and 4)
- Three 20 MP high-resolution cameras verify pin alignment with high accuracy:

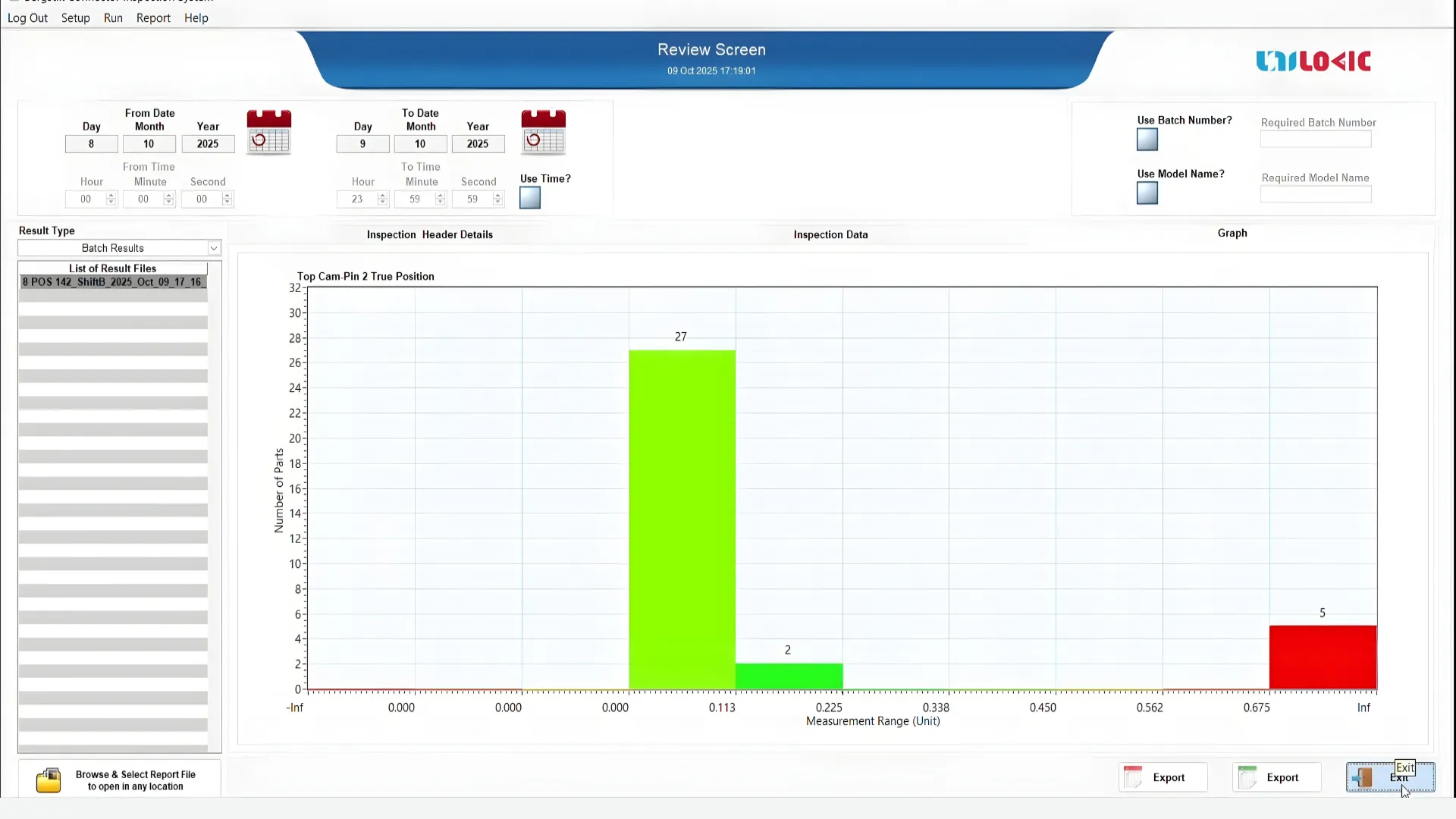

- Top Camera: Checks golden pins for alignment and spacing.

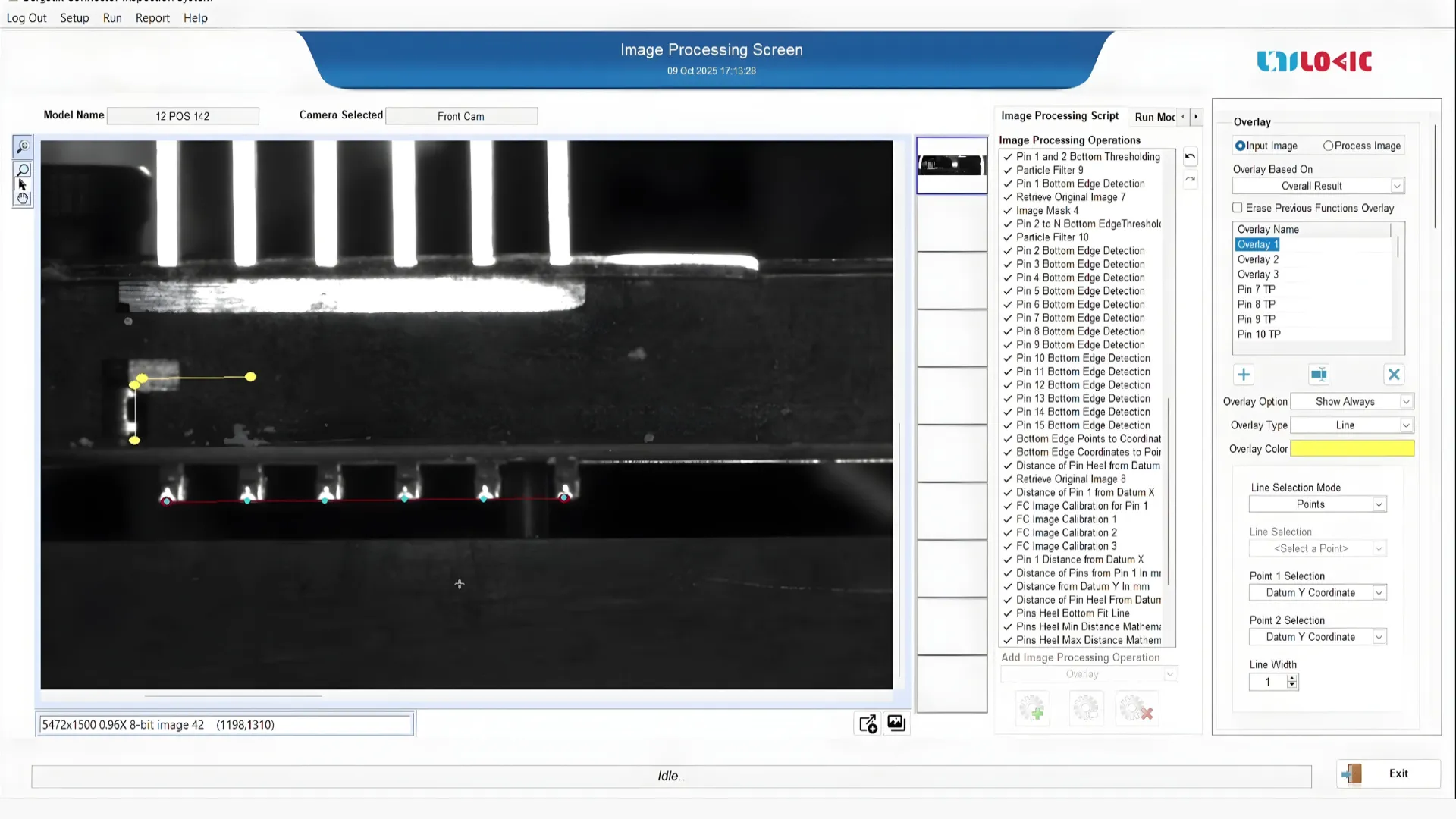

- Front Camera: Validates silver bent pins from the front.
- Rear Camera: Inspects silver bent pins from the rear.
- Each vision station uses front-light illumination for precise feature detection.
- Independent results are relayed directly to the PLC.
5. Synchronization & Sorting
- The PLC aggregates inspection data from all stations.
- Pass/fail status is determined in real time.
- Defective connectors are automatically rejected, while good connectors move to packaging.
Key Specifications:
| Parameter | Typical Value / Range | Purpose / Comments |
|---|---|---|
| Mold Orientation Camera | 20 MP | Accurate pre-assembly mold positioning |
| TP Inspection Camera | 20 MP (3 units) | Pin alignment and positional accuracy |
| Vision Stations | 4 | 1 mold orientation + 3 TP inspection |
| Orientation Station Accuracy | ~ 16 microns | |
| Inspection Station Accuracy | ~ 16 microns | |
| Defects | Orientation Station - Molding Orientation | |
| Inspection Outputs | Pass/Fail to PLC |
Inspection Station - Pin True Position, Symmetry, Pin missing. Real-time control for sorting |
Benefits of the System
- 100% Inline Automated Inspection – Every connector is checked without slowing production.
- High-Resolution Accuracy – Detects even micro-level pin deviations and orientation errors.
- Reduced Human Dependency – Eliminates subjectivity of manual visual checks.
- Real-Time PLC Integration – Enables immediate orientation correction and automated rejection.
- Scalable Design – Adaptable for different connector types, molds, or pin configurations.
Features
- Multi-camera setup (6 MP & 20 MP) optimized for mold and TP inspections.
- Custom vision software built for connector inspection tasks.
- Real-time PLC communication for precise mechanical corrections.
- Automated reject mechanism to ensure only defect-free parts proceed.
- Compact inline design for high-volume manufacturing environments.
Conclusion
The Bergstik Connector Inline Inspection System delivers a breakthrough in connector inspection automation. By integrating machine vision technology, high-resolution cameras, precision lighting, and PLC-based control, the system guarantees that every connector meets strict alignment and positional tolerances.
This automated inspection solution not only improves product quality and reliability but also minimizes waste, rework, and downtime, enabling manufacturers to scale production with confidence.
For industries where connector reliability is non-negotiable, Unilogic’s inline connector inspection systems redefine how manufacturers achieve accuracy, efficiency, and compliance.
