Automotive Retainer Clip Inspection System
Challenge
In high-volume Retainer Clip manufacturing, manual inspection is both slow and error-prone. Traditional methods make it difficult to detect tiny defects such as surface inconsistencies, incorrect leg lengths, or improper gaps between parts. These issues not only affect product quality but also increase production costs due to rework and scrap. The client needed a machine vision–based automated inspection solution that could reliably detect defects at high speed while reducing dependency on human operators.
Solution
Unilogic Technologies developed a custom vision inspection system that automates the complete inspection process for clips. Powered by automated visual inspection technology, the system is capable of inspecting 180 clips per minute with consistent accuracy.
The process begins when clips are loaded into a pre-feeder and transferred to a stainless-steel bowl feeder. The feeder vibrates to guide clips along a spiral path before placing them on a conveyor. Nylon aligners ensure correct orientation before clips enter a glass disk, where part sensors trigger multiple high-resolution cameras.

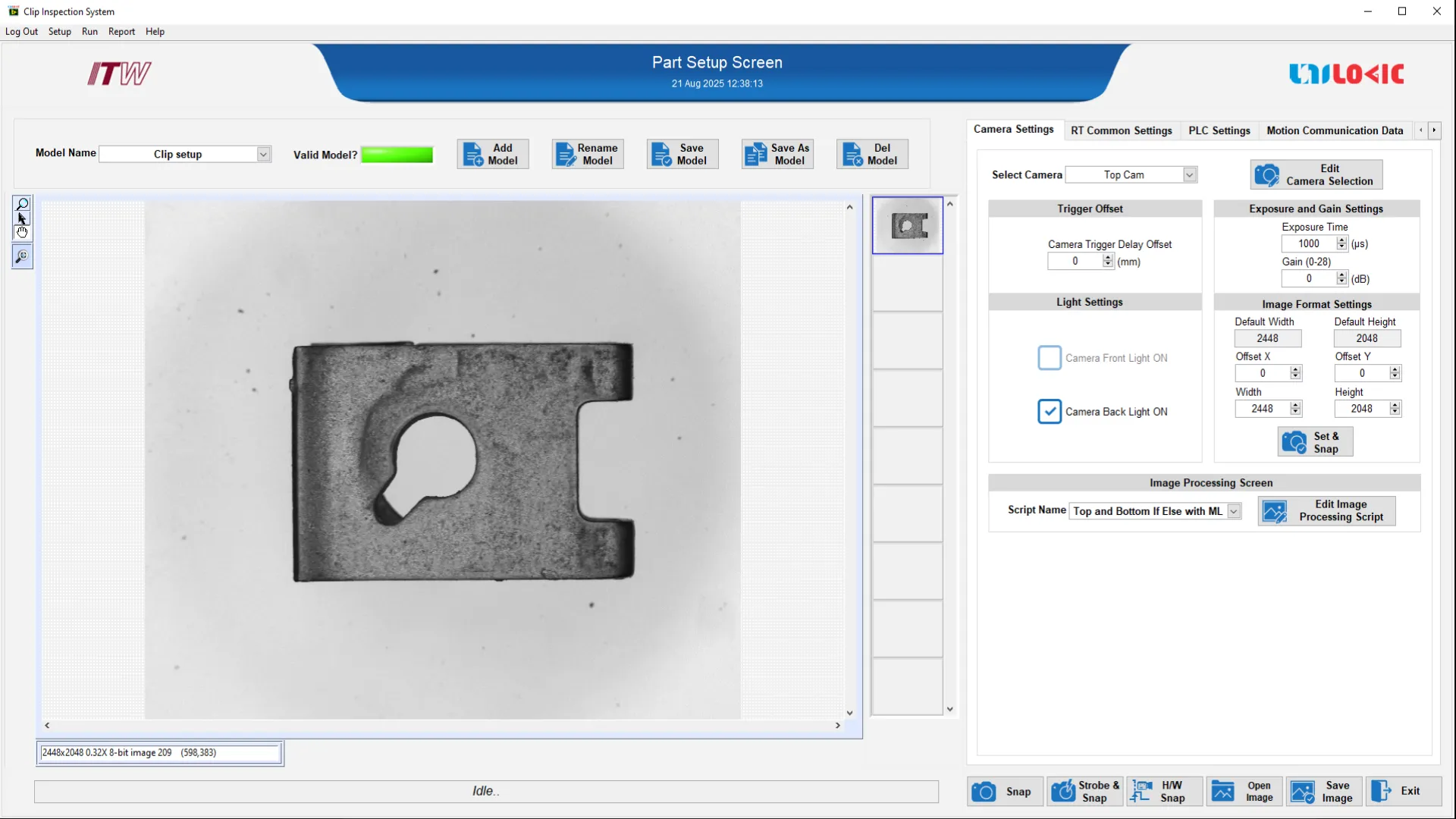

Four area-scan cameras (top, side, angled side, and bottom views) capture detailed images of every clip. Using advanced machine vision algorithms, the software analyzes surface quality, dimensions, and structural parameters in real time.
-
Defective clips are rejected automatically into a collector bin.
-
Accepted clips are sorted into selection bins using air nozzles.
-
Misfed or misoriented or stuck clips are redirected into a rerun bin.
This vision system for manufacturing ensures high-speed and high-accuracy inspection with minimal human intervention.
S.No
|
Specific parameter
|
Typical Value or Range
|
Comments
|
1
|
Machine Inspection Speed
|
180 PPM
|
-
|
2
|
Surface Defects
|
0.1 mm²
|
Top and Bottom Camera View
|
3
|
Leg Length
|
Upto to 20 mm
|
Top and Bottom Camera View
|
4
|
Width
|
Upto to 16 mm
|
Top and Bottom Camera View
|
5
|
Diameter of Dimple on Leg
|
0.1 mm to 16 mm
|
Top and Bottom Camera View
|
6
|
Clip Gap
|
0.5 mm to 8 mm
|
Side Camera View
|
7
|
Barb Length
|
0.05 mm to 6.5 mm
|
Angled Side Camera View
|
8
|
No. of Area Scan Cameras
|
4
|
4 * 5MP, USB3,
monochrome camera
|
9
|
Machine size
Length*Width*Height
|
2500mm * 1660mm *
2250mm
|
-
|
Benefits Delivered
-
Consistent Accuracy: Automated inspection eliminates human error and ensures reliable quality control.
-
Single-Person Operation: System requires minimal operator intervention.
-
Energy Efficiency: Designed with low-power electrical and pneumatic components.
-
Multiple Setups for Different Clip Models: The machine supports the configuration of multiple setups, allowing for seamless changeover to different models of clips.
-
Data-Driven Insights: Automatic generation of Excel/PDF inspection reports with datalog recording.
-
Controlled Access: Multi-level logins ensure secure access for authorized personnel.
Features at a Glance
-
High-speed inspection up to 180 parts per minute.
-
Easy operator interface with push-button controls.
-
Configurable image processing parameters tailored to production needs.
-
Automated reporting and traceability for quality audits.
Impact
With this solution, the client transitioned from manual inspection to a fully automated inspection system. The result was improved throughput, reduced quality escapes, and significant savings on rework. By integrating machine vision–driven inspection into their production line, the client achieved higher product reliability and strengthened their manufacturing efficiency.
