Spark Plug Inspection System

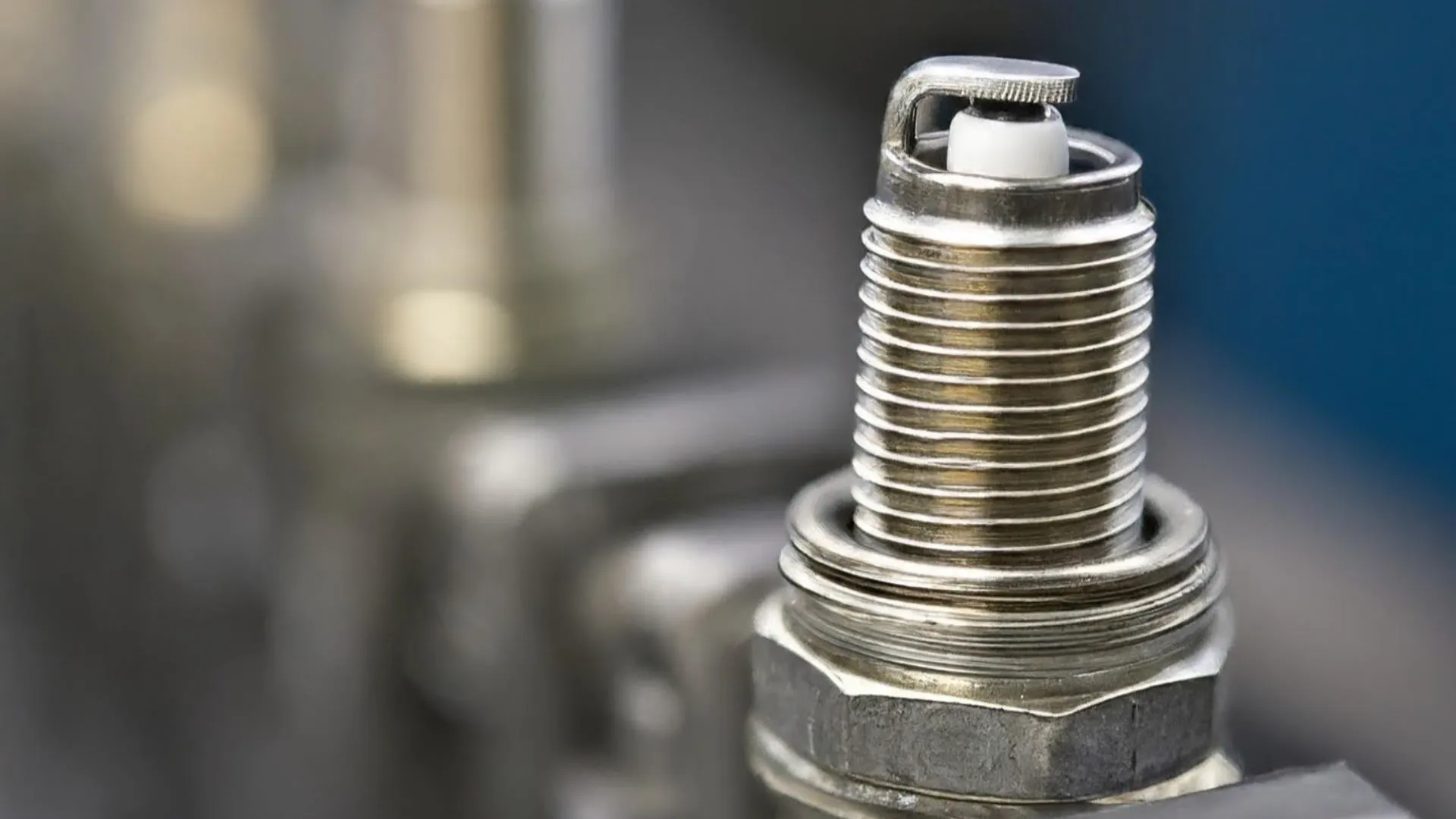

Automated Spark Plug Inspection System enables End of Line Quality Control of Automobile or Aircraft Spark plugs.
The Spark Plug Inspection system seamlessly integrates into the production line. The inspection begins with the operator loading the spark plugs onto the conveyor. As each plug advances, our comprehensive dual-camera inspection station captures images from both top and side views. This dual-camera approach, utilizing a 4MP area scan camera (for the top view) and a 2MP camera (for the side view), ensures complete coverage for detailed analysis.
The system requires an approximate 75-millisecond window. This brief static period allows the cameras to capture clear, undistorted images. These images are then processed using custom image processing algorithms, specially designed to discern between acceptable (OK) and defective (Not OK) parts. Any identified defects trigger the system to redirect the flawed spark plug to a designated rejection bin. Meanwhile, the accepted parts seamlessly proceed to the end of the line, accumulating in a designated good bin.
| S.No | Specific parameter | Typical Value or Range | Comments |
|---|---|---|---|
| 1 | Inspection speed (Parts Per Minute) | 180 PPM | The inspection speed can be adjusted based on accuracy requirements and inspection criteria. |
| 2 | No. of Area Scan Cameras | 2 | Cameras will be selected based on the requirement (4MP, 2MP Monochrome Camera) |
| 3 | Height of Spark Plug | 40-60 mm | - |
| 4 | Outer Diameter of Spark Plug | 10-20 mm | - |
| 5 | Top View Linear Dimensions Resolution | 19 um | Based on a 4 MP area scan camera & 20 mm FOV. |
| 6 | Top View Linear Dimensions +/- Repeatability | +/- 9.5 um | Based on a 4 MP area scan camera & 20 mm FOV. |
| 7 | Top View Linear Dimensions Accuracy | 19 um (+/-) | Based on a 4 MP area scan camera & 20 mm FOV. |
| 8 | Side View Linear Dimensions Resolution | 13.8 um (+/-) | Based on a 2 MP area scan camera & 10 mm FOV. |
| 9 | Side View Linear Dimensions +/- Repeatability | 6.9 +/- um | Based on a 2 MP area scan camera & 10 mm FOV. |
| 10 | Side View Linear Dimensions Accuracy | +/- 13.8 um | Based on a 2 MP area scan camera & 10 mm FOV. |
| 11 | Camera Top Working Distance (Lens tip to Plug top surface) | ~170mm | Tunable with consequence on resolution, accuracy, repeatability |
| 12 | Camera Lateral Working Distance (Lens tip to Plug lateral surface) | ~100mm | Tunable with consequence on resolution, accuracy, repeatability |
